Detalhes do produto:
|
| Modelo: | 5 polegadas | Relação da engrenagem: | 37 |
|---|---|---|---|
| Eficiência: | 40% | Tipo: | Eixo Duplo |
| Aplicação: | Sistema de rastreamento solar | Serviço do OEM: | Disponível |
| Lugar de origem: | Changzhou, China | Motorista: | Motores 12/24vdc, servomotores |
| Destacar: | solar slew drive,slewing drive for solar tracking system |
||
Dual Axis High Backlash Small Slew Drives, Worm And Gear Structure For Dual Axis Solar Tracking System
Description

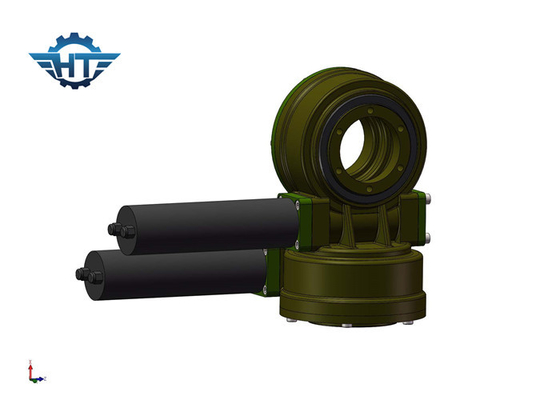

Slewing drives consist of slewing bearing, worm shaft, housing, bearing, motor and so on. Motor drive the worm shaft, the outer ring of slewing bearing will rotate, the outer ring output the torque through flange while the inner ring of slewing bearing is fixed in housing.
Function
Slewing drive is able to sustain more axial load, radial load and tilting moment. Turntable or frame rotates at azimuth and elevation driven by slewing drive.
Application
For Solar: It is designed in solar tracking system and improves power generation efficiency.
For industrial usage: Mainly used to drive two relative rotating objects in 360°.
Advantages
1. Designed with hourglass worm shaft which provides more tooth contact and higher torque
2. Service life is increased by gear and raceway harden
3. Product performance is tested and ensured product quality.
There are many applications in which the slewing drive can be utilized, primarily because it is perfect for applications that require both load-holding power and rotational torque strength.
Specifications
| SDE Model Performance Parameters | ||||||||||
| Model | Ratio | Rated Output Torque | Tilting Torque | Axial Load | Radial Load | Holding Torque | Efficiency | Precision | Self-locking | Weight |
| N.m | N.m | kN | kN | N.m | degree | Yes | kg | |||
| 3" | 31:1 | 300 | 1500 | 3.6 | 15 | 7000 | 40% | ≤0.1 | Yes | 21kg |
| 5" | 37:1 | 637.5 | 5000 | 16 | 27 | 9200 | 40% | ≤0.1 | Yes | 32kg |
| 7" | 57:1 | 1750 | 7000 | 34 | 58 | 13200 | 40% | ≤0.1 | Yes | 54kg |
| 9" | 61:1 | 4300 | 16000 | 60 | 130 | 27200 | 40% | ≤0.1 | Yes | 88kg |
| 12" | 78:1 | 5600 | 25000 | 77 | 190 | 40560 | 40% | ≤0.1 | Yes | 157 kg |
| 14" | 85:1 | 6750 | 48000 | 110 | 230 | 44200 | 40% | ≤0.1 | Yes | 214kg |
| 17" | 102:1 | 9460 | 67000 | 142 | 390 | 53040 | 40% | ≤0.1 | Yes | 315kg |
| 21" | 125:1 | 16000 | 89000 | 337 | 640 | 65000 | 40% | ≤0.1 | Yes | 481kg |
| 25" | 150:1 | 21450 | 112000 | 476 | 950 | 89000 | 40% | ≤0.1 | Yes | 682 kg |
